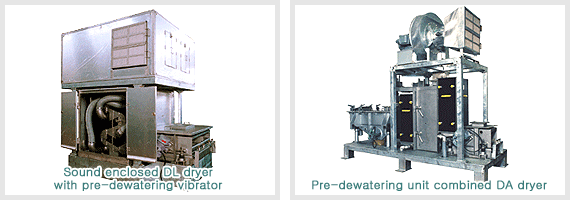

The dryers we offer and manufacture reflects our dedication to plastic pelletizing field in which our sales records of dryers reaches up to 400 nos worldwide. Made of stainless steel, our dryer with a built-in pre-dewatering vibrator is duct-connected with air suction blower and vent blower which ensure pellet moisture content less than 0.1% as lowest. As moisture content remaining in pellet surface is important in pelletizing process, this unique design of pre-dewatering vibrator is integrated before dryer and works as pre-dewatering unit and slurry carrier. Further, field collected statistics proves that pre-dewatering vibrator plays an important role in transporting pellet and in lessening moisture content.

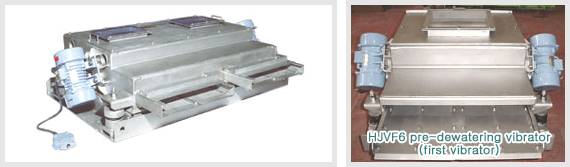

Built-in pre-dewatering vibrator
Single/Duo dryer available
Designed specially for industry of pellet moisture concerned and reduction of powder generation
Available Capacity : 1-15 ton/hr
Horizontal inlet chute
Manifolds for air distribution
Exchangeable screen units : Screen material => Steel bar screen
Pellet outlet with air reducer
Air nozzles of pellet transportation/moisture removing
Housing made of stainless steel with sound lowering material
Water drain box/Pressure gauge/dampers
Suction Blower/Vent blower with drives





Slurry carrier with punching plate
Cushion rubber with vibrating support units
Water outlet

 Upper cover with inspection window
2 special vibration motor



M/C type
Specifications
HJDL3
+ HJVF3
HJDL(DA)8
+ HJVF8
HJDL(DA)12
+ HJVF12
HJDL15
+ HJVF15
Throughput (ton/hr)
Max. 3
Max. 6
Max. 12
Max. 15
Water flow (㎥/hr)
Max. 20
Max. 25
Max. 50
Max. 70
Blower drives (kW)
11
22
30kW X 2
37kW X 2
Air flow rate (㎥/min)
45
90
90㎥/min X 2
100㎥/min X 2
Air pressure (mmAq)
800
800
800mmAq X 2
1000mmAq X 2
Air channel
Single
Single
Duo(double)
Duo(double)
No. of carrier
1
1
2
1
Vibration motor (kW)
0.13kW X 2
0.25kW X 2
0.4kW X 2
0.4kW X 2
